Versatile Mulching Device
Professional mulcher with inclinable suspension
The Votex Jumbo Flex side mower has the same technical features as the Jumbo, but has a inclinable suspension. This makes it the
side mulcher for the professional, which can be used in almost all situations.
Versatile Mulching Device
Professional mulcher with inclinable suspension
The Votex Jumbo Flex side mower has the same technical features as the Jumbo, but has a inclinable suspension. This makes it the
side mulcher for the professional, which can be used in almost all situations.
© Votex B.V.
About the product: Votex Jumbo Flex
Professional mulcher type Votex Jumbo Flex 120R / Flex 150R / Flex 190 / Flex 230
Robust side mulcher for professional use with integrated slope compensation, so that even shallow trenches can be worked with a large working width.
Technical data:
- Adjustment range from -60° to +90° from the mowing body
- Standard three-point linkage Cat 2 and 3
- Mechanical starting safety device with spring support for both directions of travel
- Hydraulic lateral adjustment 60 cm as SWING-ON-LINE parallelogram system
- Max. delivery from tractor center: 274 cm / 310 cm / 346 cm / 382 cm
- ECOMOW mowing hood with rubber shield front and rear
- Optional chain shield available
- Rotor shaft with flail 40 x 12 mm movably suspended on shackle
- Quantity 36 pcs / 48 pcs / 60 pcs / 72 pcs
- Optional: hammer flail available
- Drive from the power take-off shaft via a power belt to the helical silent transmission min.: 35 KW / 40 KW / 50 KW / 60 KW
- Speed: 540/1,000 rpm
- Optional: 750 rpm available
- Working width: approx. 110 cm / 145 cm / 181 cm / 217 cm
- Transport width: 190 cm
- Weight from approx.: 1,055 kg / 1,110 kg / 1,165 kg / 1,225 kg with cardan shaft with freewheel
- CE Certified
Features:
- Robust professional mulcher
- With reinforced components for contractors and machinery pools
- With integrated slope compensation for flat slopes
Areas of application:
- For mulching ditches and embankments in landscape maintenance
More Information:

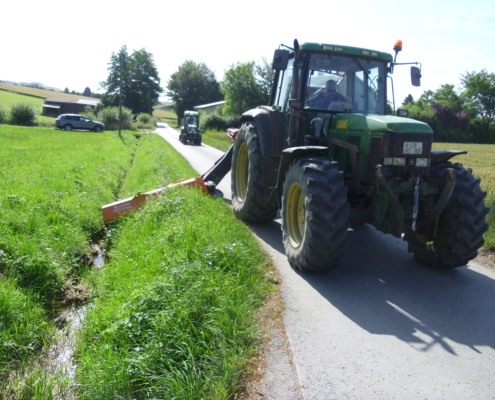

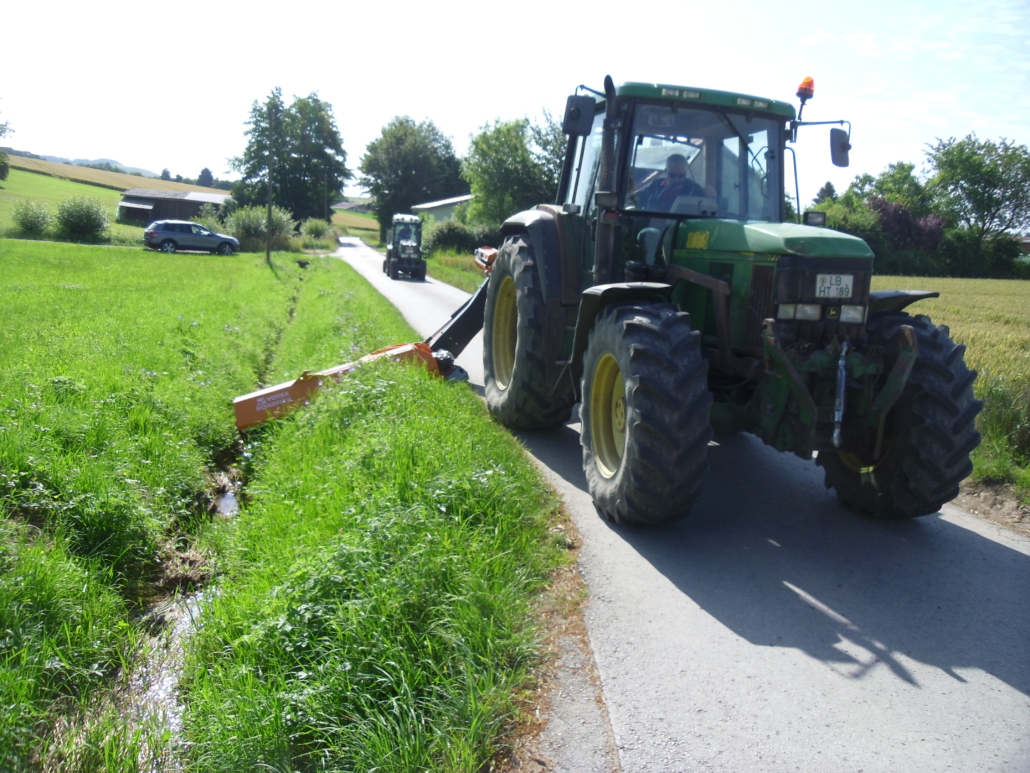

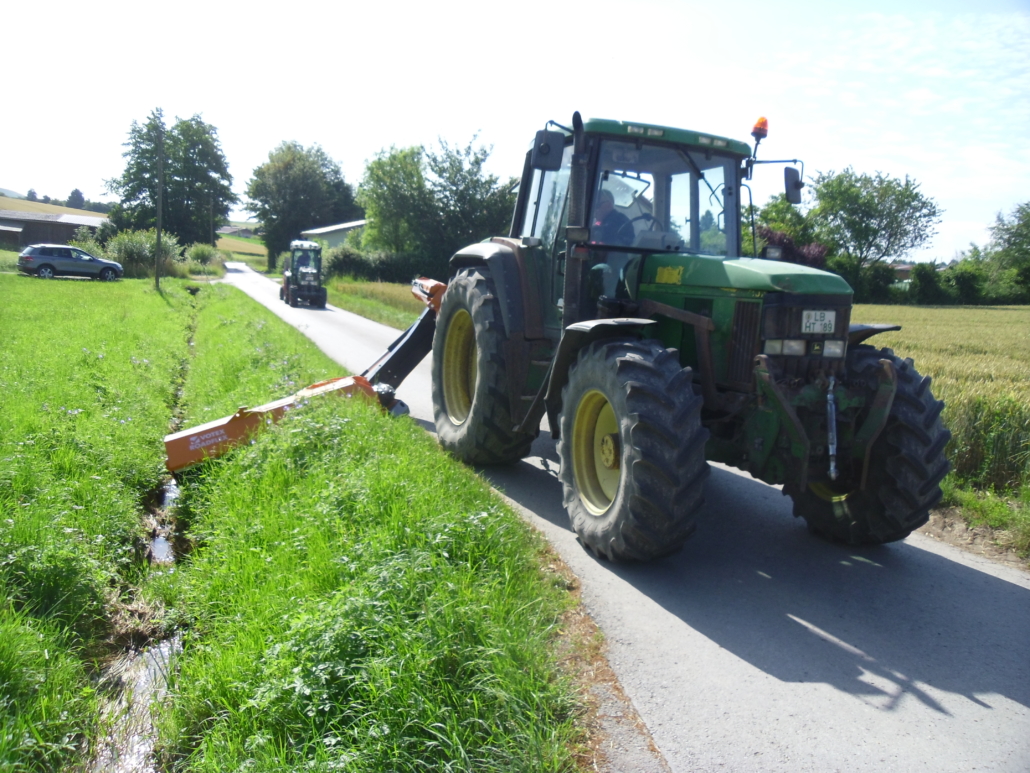

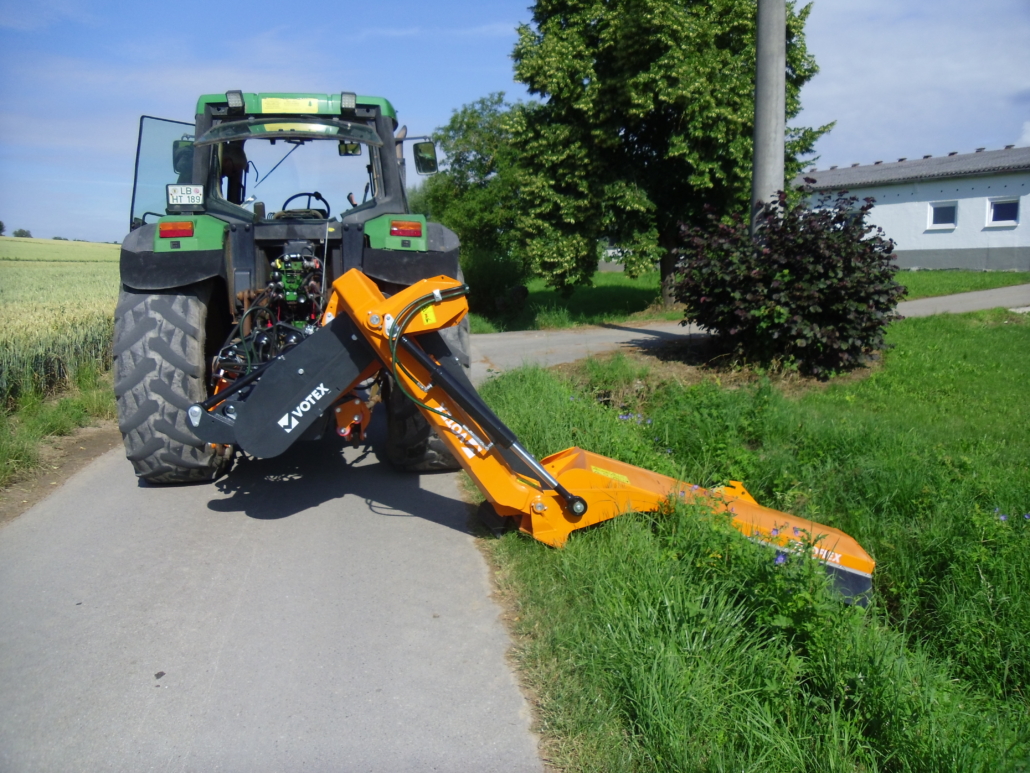

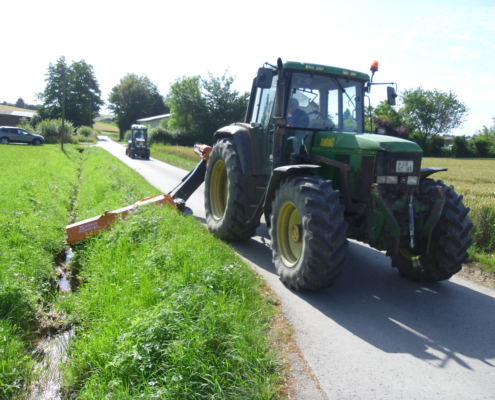

The Votex Jumbo Flex has the same technical features as the Jumbo, but has a tilting suspension. When the suspension of the mowing hood is tilted to the left, it is possible to mow shallow ditches and gutters with a large mowing width.
This makes it the side mulcher for the professional that can be used in almost any situation.
